Category Archives: alphamid

Tall tent pole from two trek poles and 3 straps


Three straps are included with the pyramid tarps. With these you can make a long pole for setting up a pyramid tarp using two trekking or ski poles. Using adjustable trekking poles makes the tarp pole adjustable too.



two poles 3 straps

Strap thru wrist loops

Layout other straps

Buckle and tighten center strap around poles

Tighten all straps

Place tip protector on pole end

Tip end to protect tent fabric

Advertisements

Leave a comment

Filed under alphamid, Do It Yourself, pyramid tarp, Tips for the Backcountry

Thoughts on Tarp Setups


Some of nylon’s stretch can be mitigated by how the fabric pieces are cut out. Curves etc. in seams and hems can help maintain shape. I far as I know, nylon is still the fabric of choice for shock absorption (parachutes, ropes) and does a good job for shelters suddenly loaded by wind or snow.

It does sag a bit at times from temperature drops or moisture. In something like a pyramid tarp, having a method for adjusting the pole upward to take up slack from within the shelter is nice. If your tarp pole is not adjustable, this could be as simple as having a stone handy to place underneath the pole. If you use outside shear poles, reaching under the hem and pulling the two pole bottoms inward can do the same.

Two wooden poles can be  lasted to hold the tarp up from outside.

Two wooden poles can be lasted to hold the tarp up from outside.

Be sure in any case or fabric type you stake out the hem in the right shape. On a symmetrical 4 sided mid, a diamond shape instead of a perfect square will produce saggy walls with any fabric. Floored shelters are easier to get the stake out pattern correct. On a floorless shelter you could tie tiny cords corner to corner to insure proper and repeatable layouts.

Leave a comment

Filed under alphamid, backpacking tarps, Oware Backpacking Gear, pyramid tarp, Tips for the Backcountry

Bathtub floor for Pyramid Tarps


Silnylon floors for Pyramid Tarps.

This one is for the 10×10′ pyramid (8×8′ plus sidewalls) and weighs 17 oz.

Has 8 tie outs and tie ups around hem to maintain the bathtub type walls. Clips to mitten hooks inside tent. $120 shipped.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

Mid floor

2 Comments

Filed under alphamid, Oware Backpacking Gear, pyramid tarp

Line Locs, How To Add To Existing Tent Tie Outs


Use a 12" or longer piece of 2-3 mm cord. Use a 2 wrap prussic knot on the Line Lock. Form a loop in the cord.

Use a 12″ or longer piece of 2-3 mm cord. Use a 2 wrap prussic knot on the Line Lock. Form a loop in the cord.

Girth hitch (Larks Foot) the loop around the tarp or tent tie out.

Girth hitch (Larks Foot) the loop around the tarp or tent tie out.

Buy linelocs here
http://shop.bivysack.com/product.sc?productId=88&categoryId=10

Leave a comment

Filed under alphamid, backpacking tarps, cat tarp, Do It Yourself, Fabric, flattarp, Oware Backpacking Gear, oware tarps, pyramid tarp, Tips for the Backcountry

Pyramid Tarp, Set Up

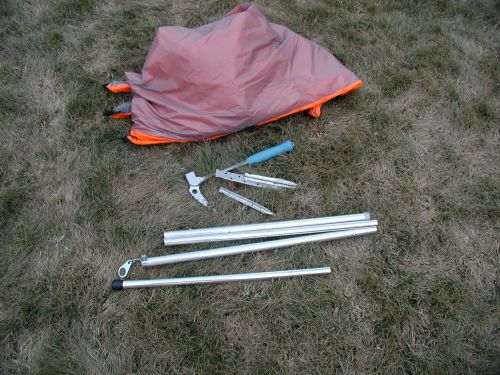

Pyramid, Stakes, Adjustable Pole

Pyramid, Stakes, Adjustable Pole

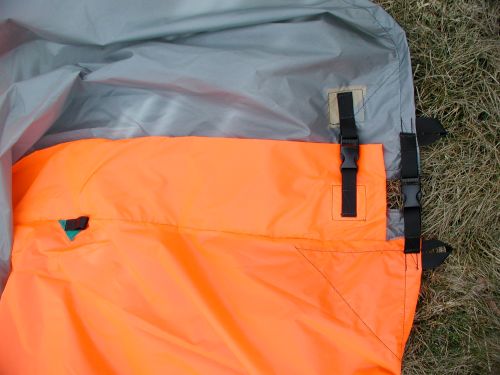

Zip and buckle bottom before staking out

Zip and buckle bottom before staking out

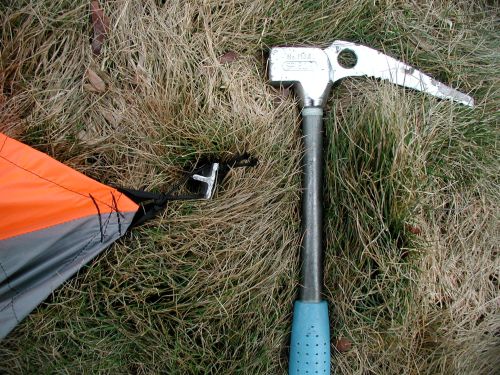

Stake out the four corners. Use a small loop of replaceable cord so wear from rough stake edges will not damage the tent web tie outs.

Stake out the four corners. Use a small loop of replaceable cord so wear from rough stake edges will not damage the tent web tie outs.

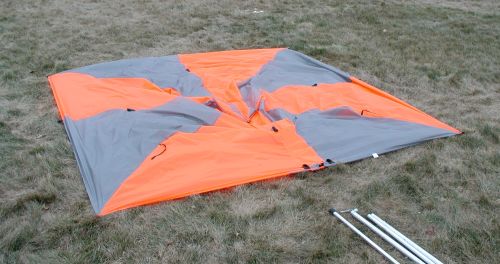

Stake corners in a perfect square and slightly stretched. This prevents a diamond staking pattern which will cause one corner to be up in the air.

Stake corners in a perfect square and slightly stretched. This prevents a diamond staking pattern which will cause one corner to be up in the air.

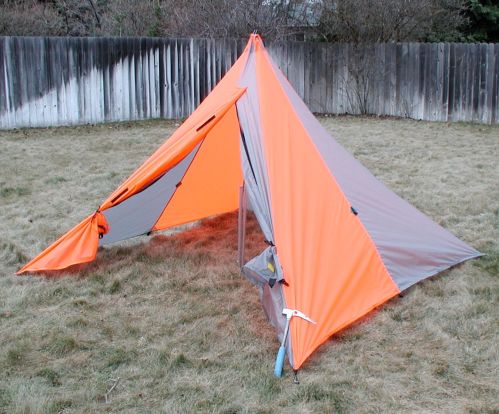

Doors can be tied back and pole inserted after the 4 corners are staked out

Doors can be tied back and pole inserted after the 4 corners are staked out

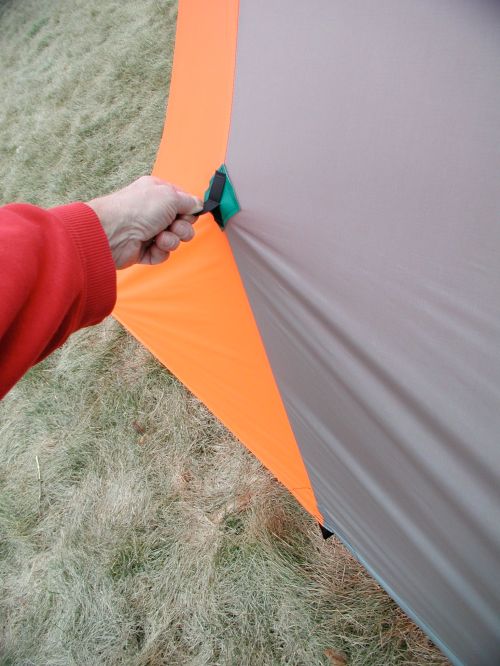

Additional tie outs can be staked around the hem and the upper center tie outs can be used to gain headroom in windy or heavy snow conditions.

Additional tie outs can be staked around the hem and the upper center tie outs can be used to gain headroom in windy or heavy snow conditions.

Some extra ventilation can be gained by zipping the top zipper slider down and holding the door apart carefully with a stick.

Some extra ventilation can be gained by zipping the top zipper slider down and holding the door apart carefully with a stick.

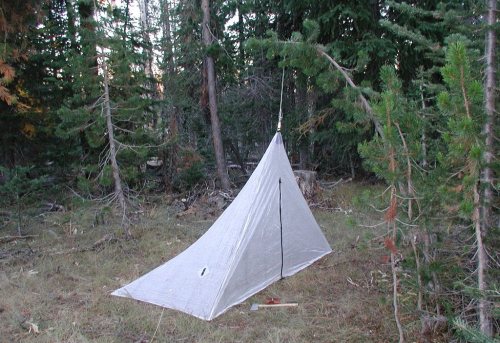

A green branch can be used instead of a tent pole sometimes.

A green branch can be used instead of a tent pole sometimes.

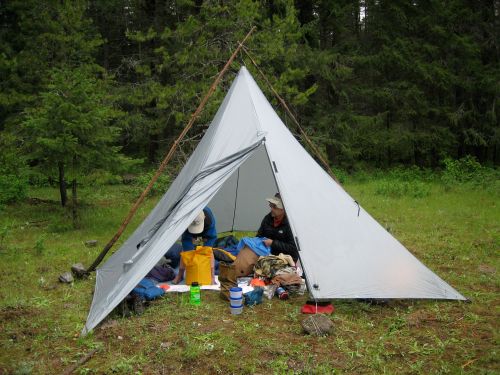

Two wooden poles can be  lasted to hold the tarp up from outside.

Two wooden poles can be lasted to hold the tarp up from outside.

Leave a comment

Filed under alphamid, backpacking tarps, Oware Backpacking Gear, oware tarps, pyramid tarp, Tips for the Backcountry

Alphamini Photos


Alphamini Photos

Take a pyramid tarp, cut it in half and add an A Frame door and you have the Alphamid TM. Half Pyramid floorless shelter 4×8 by 5′ feet tall. 30d silnylon Weighs 13.5 oz A floorless tarp which is quick to set up, light and inexpensive. A favorite for winter campers, it can be set up over a snow pit for extra roominess. It includes a stuff sack. Use your ski probe poles, hang it from a tree limb or order the separate shock corded pole to set it up. Just clip the buckle at the bottom of the door, zip up the zipper, stake out the four corners evenly and put up the pole. Additional tie outs are on the center seams. The apex is reinforced , the zipper is a #5 coil. The taller steeper pitch sheds snow and rain much better than the competitors shelters as well a providing more headroom. Includes 1 oz. pole connector (3 webbing straps) so you can use two trekking or ski poles to make a height adjustable pole. Fabric is not flame retardant and will burn and melt when in contact with high heat or flame. Keep away from camp stoves, gas lanterns, campfires etc.
Great shelter for Search and Rescue-very light and you can set it up over a prone victom without
moving them. Current color is grey.

http://shop.bivysack.com/product.sc?productId=39&categoryId=4

Leave a comment

Filed under alphamid, backpacking tarps, Oware Backpacking Gear, oware tarps, pyramid tarp

Foam Pads for winter, Line Loc 3’s option on tarps


Add a thick foam pad to your sleep system to insure a warm sleep as frost approaches.

http://shop.bivysack.com/product.sc?productId=80&categoryId=3

——————-

Also now, line loc’s can be added to existing tarps for those that like the convenience of adjusting

the tarp cords from inside or outside the shelter.

http://shop.bivysack.com/product.sc?productId=94

Leave a comment

Filed under alphamid, cat tarp, flattarp, oware tarps
